Z-Vent Special Gas Vent Single Wall

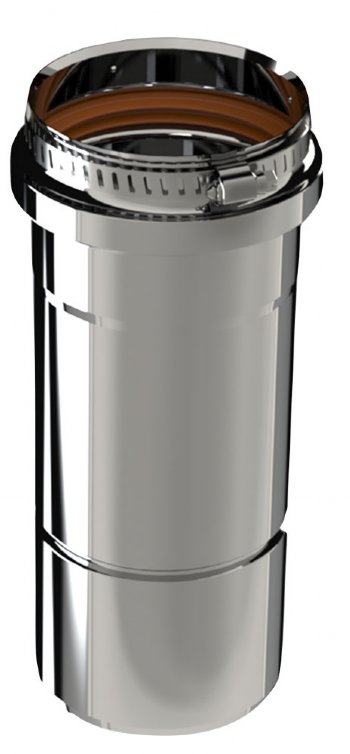

Z-Vent Single Wall Pipe

Part Number: 2SVEPWC(F)(03-05), 2SVEP(06-24)
  • Gasketed connections
  • Fusion welded pipe seams
  • No sealant required, no cure time, or no call backs
  • Air tight seam, smooth finish, better fit
  • Metallic special gas vent single wall male end can be cut to length on sit saving time and money.
  • Single and double wall, manufactured in diameters from 3" up to 24"
Available in diameters 3" up to 24in and standard lengths up to 10ft (3in and 4in diameter only). Pipe can be cut to length. The female end of each Z-VENT component incorporates a Double Fail Safe self sealing gasket. Examine all components to ensure that gasket integrity has remained during shipping. Gaskets must be in proper position or flue gases could leak resulting in carbon monoxide poisoning. The installation shall be in accordance with the manufacturer's installation instructions.

See Z-Vent Dimensional Data for a complete list of parts.
Z-Vent Single Wall Pipe
Z-Vent Single Wall Pipe
